Motorized (Electric) Butterfly valve
4Matic offers a complete line of actuators and controls to meet all your automation needs. This enables us with the capability to provide our customers with a one stop solution at single source responsibility.

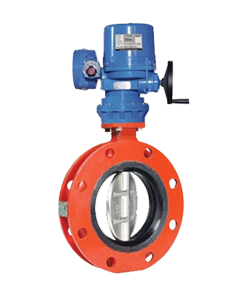

Rubber Lined Double Flange Butterfly Valve with Electric Actuator
| Size | 3" to 72" |
| MOC | CI / DI / WCB / CF8M |
| Seals | Nitrile / NBR / EPDM / Viton |
| Pressure | PN 6 / 10 / 16 / 20 & 25 |
| Temperature | -20°c to 80°c (Depending on MOC) |
| Ends | Wafer Type Double Flange |

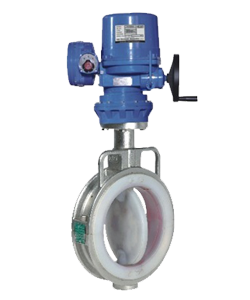

PTFE (FEP - PFA) Lined Butterfly Valve with Electric Actuator
| Size | 2" to 20" |
| MOC | WCB /CF8 / CF8M / CF3M |
| Seals | FEP / PFA |
| Pressure | 10 Kg/cm2 |
| Temperature | FEP 180°c / PFA 230°c |
| Ends | Wafer Type |

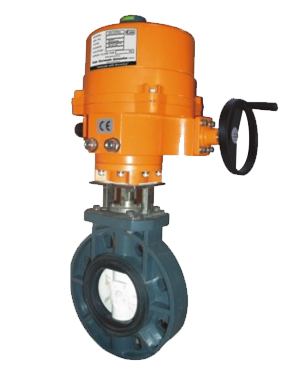

UPVC Body Butterfly Valve with Electrical Actuator
| Size | 1½" to 12" |
| MOC | UPVC / PP |
| Seals | NBR / EPDM |
| Pressure | Upto 10Kg/cm2 |
| Temperature | Upto 180°c |
| Ends | Wafer Type |

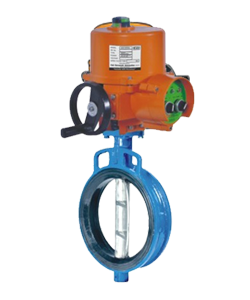

Rubber Lined Wafer Type Butterfly Valve with Electric Actuator
| Size | 1½" to 72" |
| MOC | CI / DI / WCB / CF8M |
| Seals | Nitrile / NBR / EPDM / Viton |
| Pressure | PN 6 / 10 / 16 / 20 & 25 |
| Temperature | -20°c to 80°c (Depending on MOC) |
| Ends | Wafer Type |
Double Offset Disc Butterfly Valve with Electrical Actuator
| Size | 2½" to 88" |
| MOC | WCB / CF8 / CF8M / CF3M |
| Seals | NBR / PTFE / RPTFE |
| Pressure | PN 10 / 16 / 20 & 25 |
| Temperature | Upto 180°c / 250°c |
| Ends | Wafer Type / Double Flange |

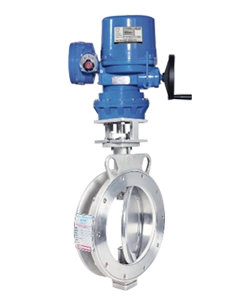

High Performance Butterfly Valve with Electrical Actuator
| Size | 1½" to 24" |
| MOC | WCB / CF8 / CF8M / CF3M |
| Seals | NBR / PTFE / RPTFE / EPDM / VITON |
| Pressure | PN 6 / 10 / 16 / 20 & 25 |
| Temperature | Upto 180°c / 250°c |
| Ends | Wafer Type / Double Flange lug type |

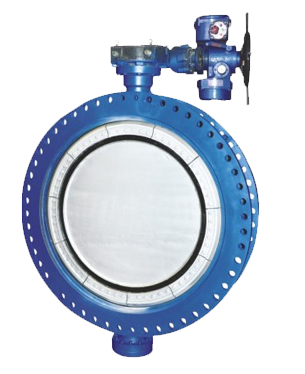

AWWA C504 Standard Larger Dia Butterfly Valve with Electrical Actuator
| Size | 1½" to 88" |
| MOC | IS Grade MS / WCB / CF8 |
| Seals | NBR / EPDM / Nitrile Vilton |
| Pressure | PN 6 / 10 / 16 / 20 & 25 |
| Temperature | -20°c to 80°c (Depending on MOC) |
| Ends | Double Flange AWWA C207 |
Triple Offset Butterfly Valve with Electrical Actuator
| Size | 1½" to 12" |
| MOC | Aluminium Alloy |
| Seals | Nitrile / NBR / EPDM / Vilton |
| Pressure | PN 10 / 16 |
| Temperature | Upto 180°c |
| Ends | Wafer Type |
